XG861

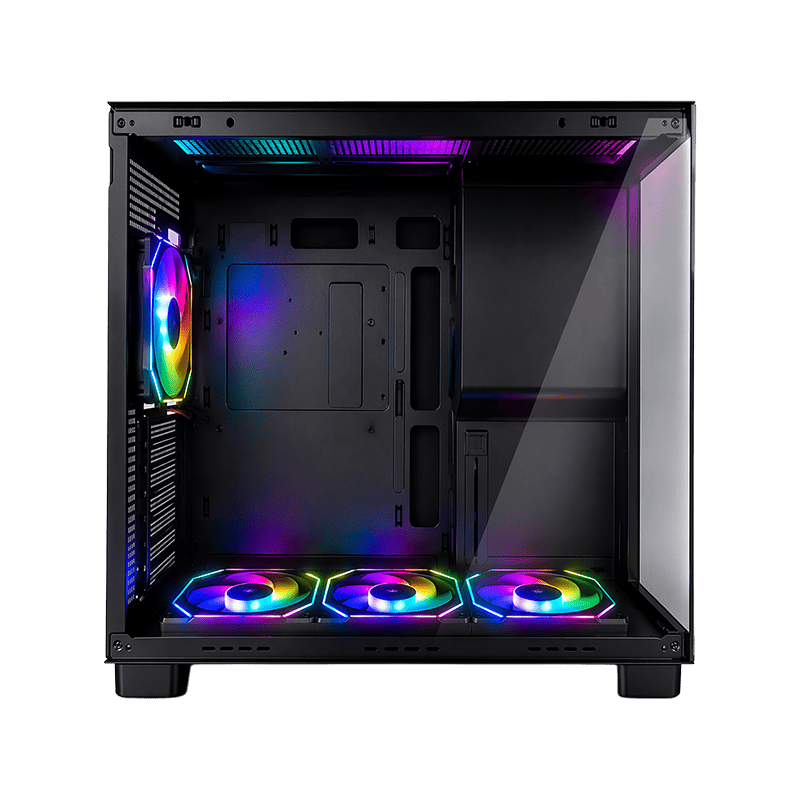

The latest XG861 is designed with bottom-mounted airflow and an angled fan bracket, allowing three ARGB fans to direct cooling precisely toward the GPU for faster heat dissipation and improved rear exhaust efficiency.
With no bottom PSU shroud blocking the view, the interior remains fully visible for a clean, showcase-ready build.
Its ultra-slim 235 mm width reduces footprint on and under your desk, maximizing usable space.
General data
- Case Type
- Midi Tower
- Case Dimensions (L × W × H)
- 430 × 235 × 408.8mm
- Metal Structure Dimensions (L × W × H)
- 436.5 × 235 × 434mm
- Package Dimensions (L × W × H)
- -
- Mainboard-Compatibility
- ATX, micro-ATX, ITX, BTF (Back Plug )
- Formfactor PSU
- ATX (not included)
- Case Material
- Steel (SPCC)
- Material Front Panel
- tempered glass
- Material Side Panel
- tempered glass
- PCI slots
- 7
- Drive Capacity
- Drive Bays 1 × 3.5" / 1 × SSD or 2 × SSD
- Cooling Fan Support
-
- Top: 3 × 120mm
- Rear: 1 × 120mm / 1 × 140mm
- Bottom: 3 × 120mm
- Radiator Support
-
- Top: 280mm / 240mm
- Rear: 140mm / 120mm
- Hardware Dimensions
-
- Cooler height: 175mm
- GPU length: up to 420mm
- PSU length: 160mm
- Features
- ARGB / PWM Control Board, ARGB Control Bottom
- Weight
- -
