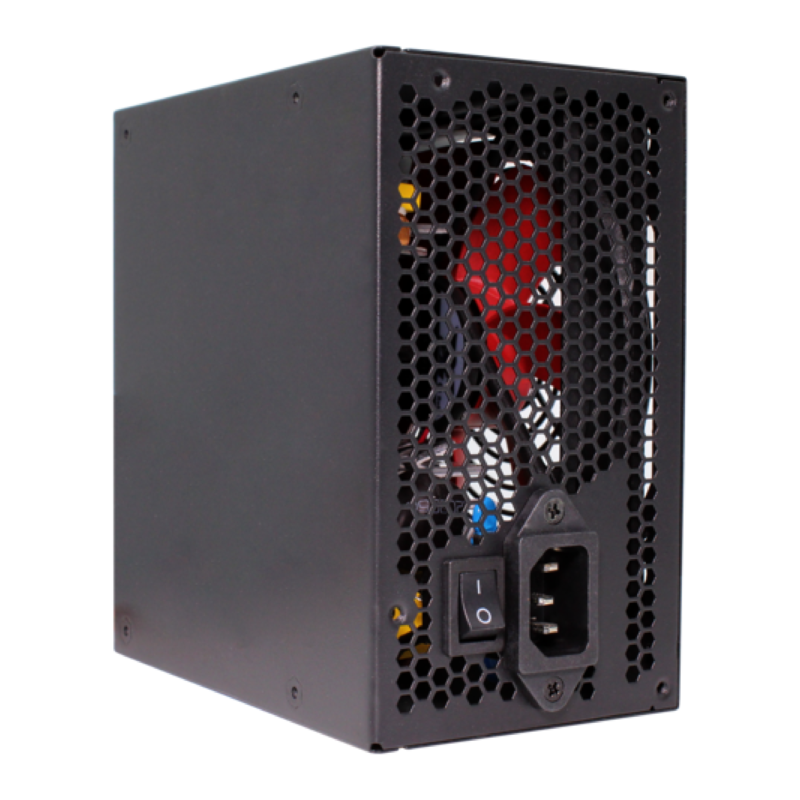

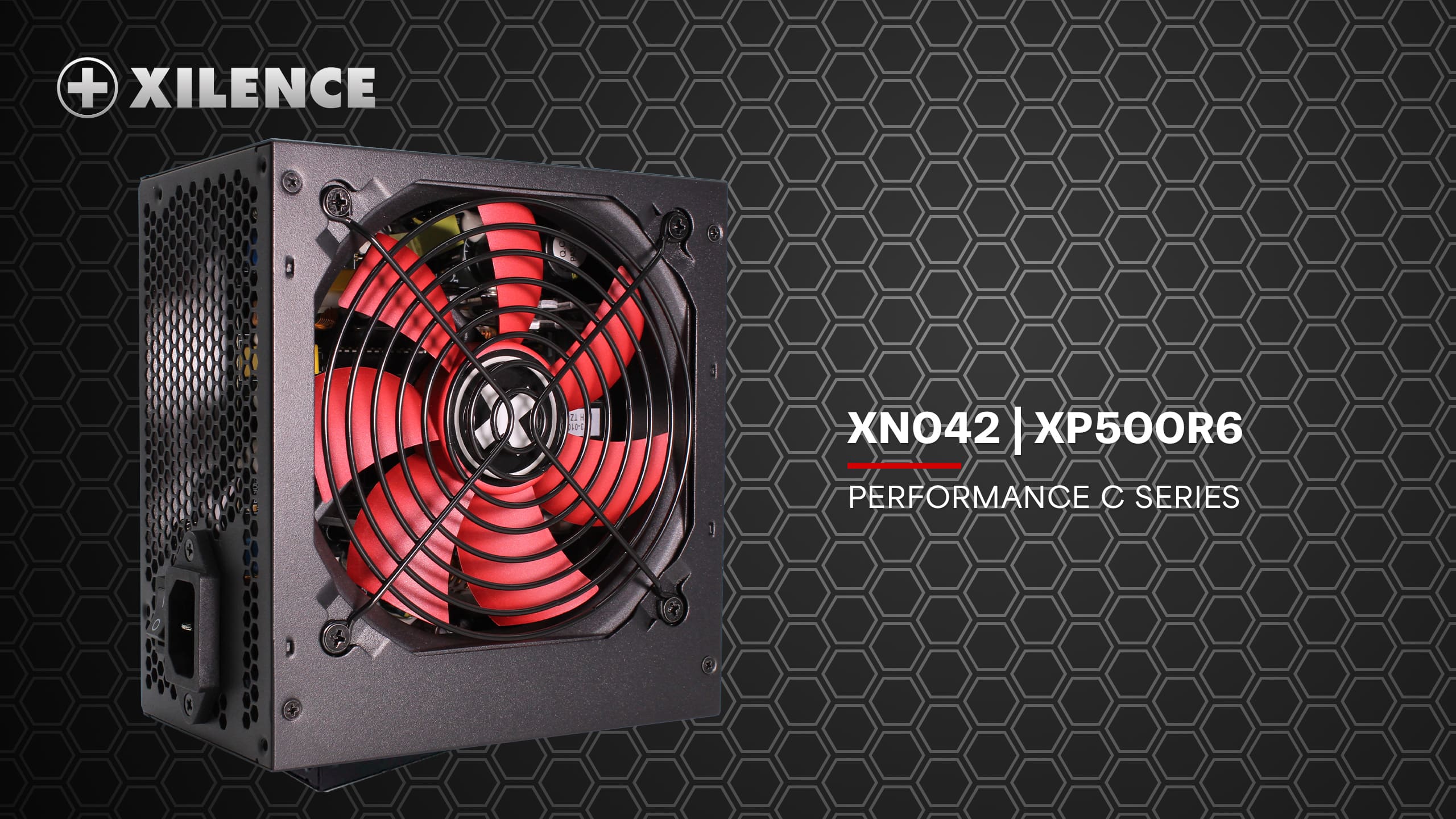

XN042 | XP500R6
The new Xilence Performance C series is focusing on the essentials. Designed for office and home computers, the new Performance C series delivers stable voltages with high efficiency (ErP2014). This guarantees a considerably low fan noise. Four built-in safety circuits ensure safe operation at all times.
- Extremely silent cooling: large 120mm fan
- Excellent air flow design for a better heat dissipation
- Following safety design:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP (Short Circuit Protection)
- OLP (Over Load Protection)
- Low stand-by consumption
- Complies with ErP2014 norm
- Active-PFC
SPEC

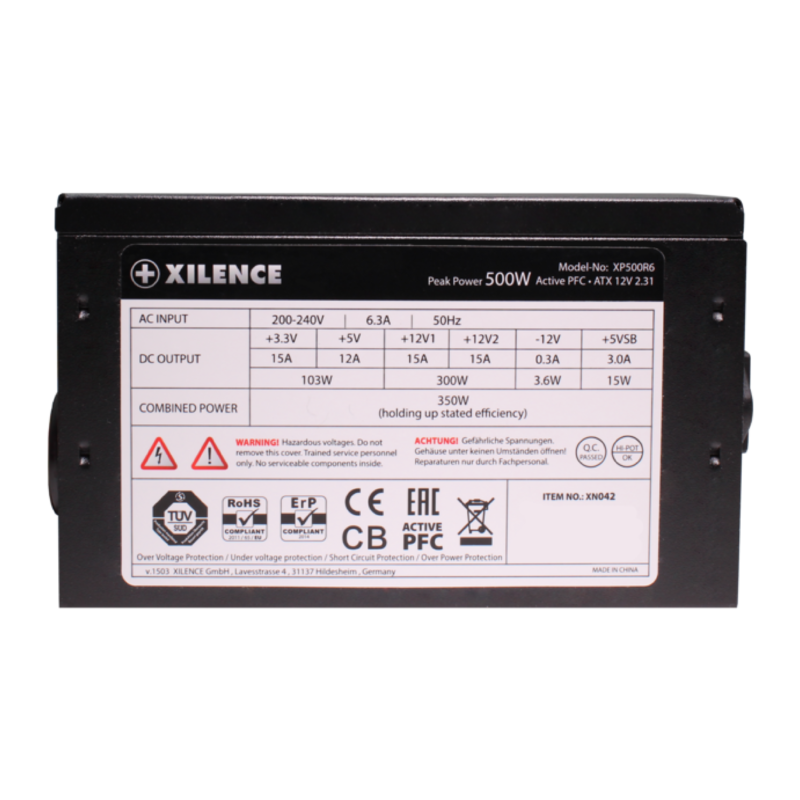

General Data
- Model
- Performance C | XP500R6
- Peak Power (W)
- 350W
- Form Factor ATX 12V
- Version 2.31
- Voltage (Vac)
- 200 – 240
- Frequency (Hz)
- 50
- Input current (A)
- 6.3A
- PFC
- active

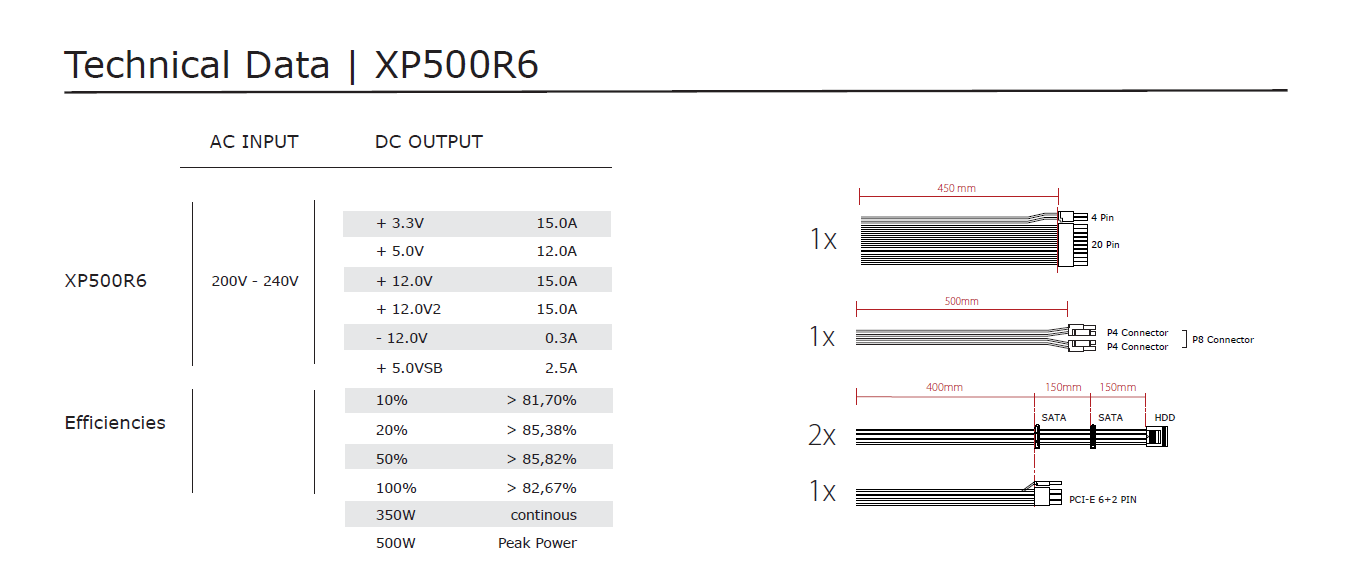

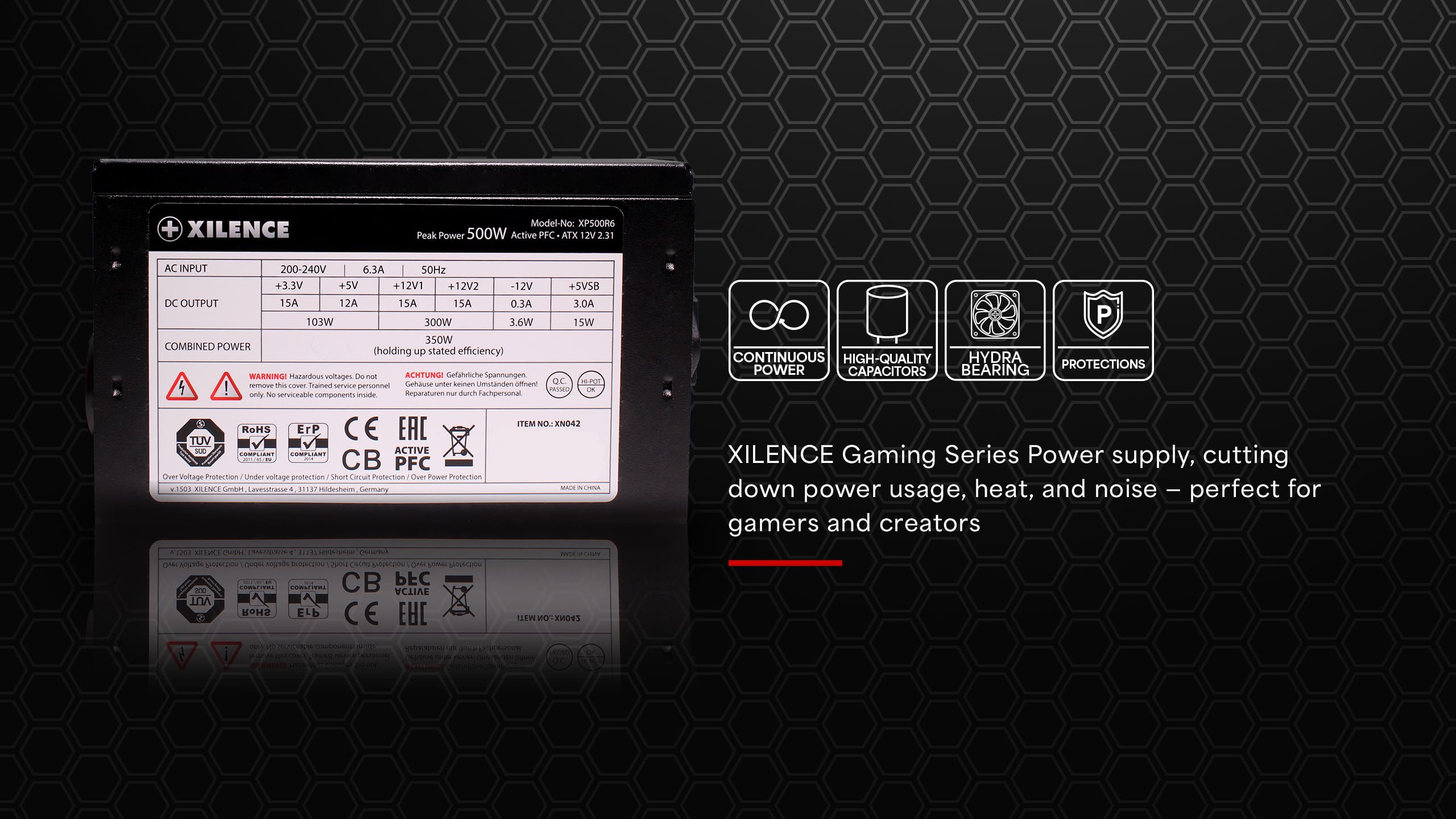

Output
- +3.3V (A)
- 15A
- +5V (A)
- 12A
- +12V1 (A)
- 15A
- -12V (A)
- 0.3A
- +5Vsb (A)
- 3A
- Max. combined power 12V (W)
- 350W
- Max. combined power 3.3V + 5V (W)
- 100W
- +12V2 (A)
- –
Fan / Cooling technology
- Bearing technology
- Hydro Bearing

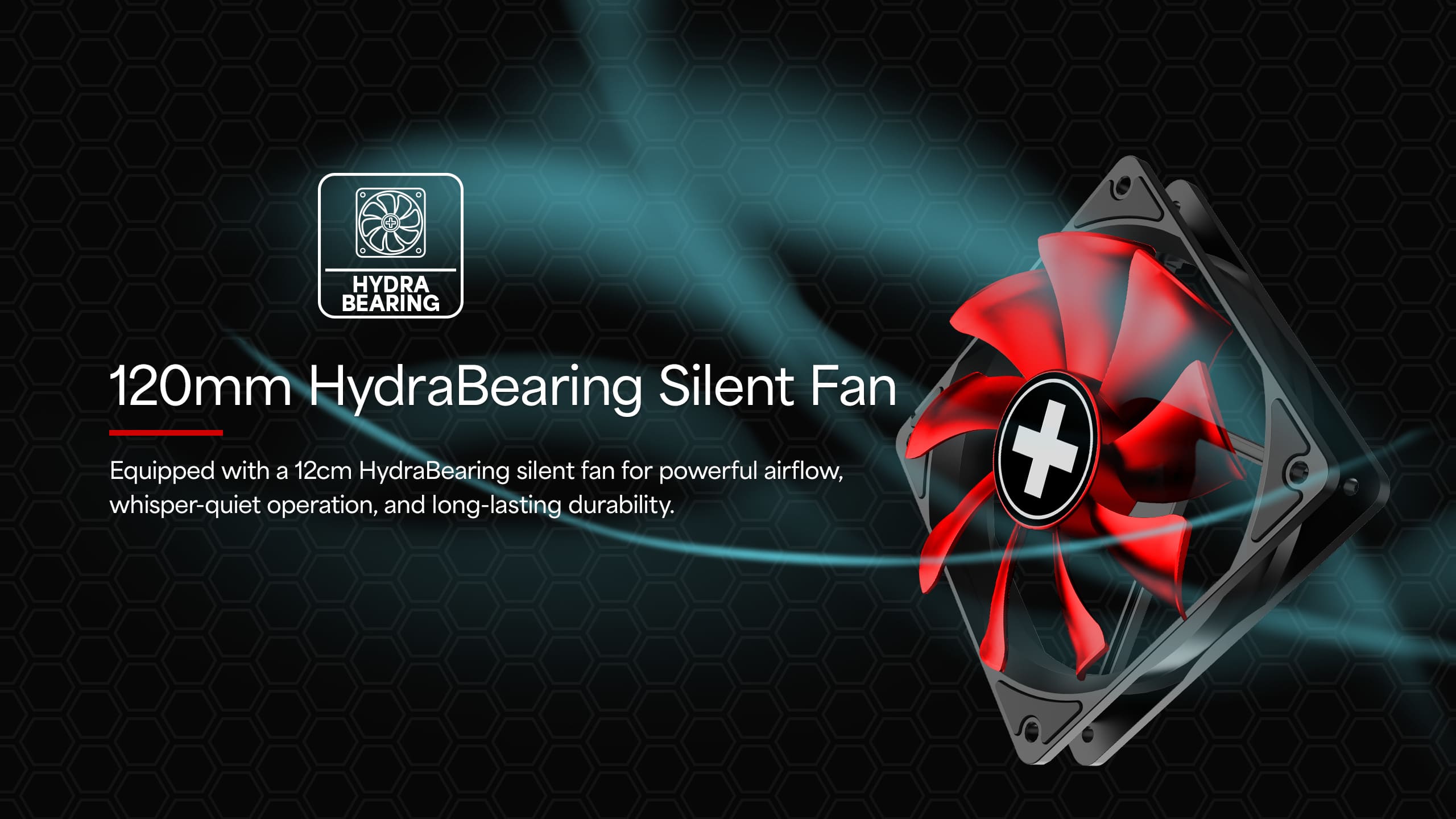

- Fan size (mm)
- 120mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- –
- Efficiency (%) at 230V, 20% load
- –
- Efficiency (%) at 230V, 50% load
- –
- Efficiency (%) at 230V, 100% load
- –
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓

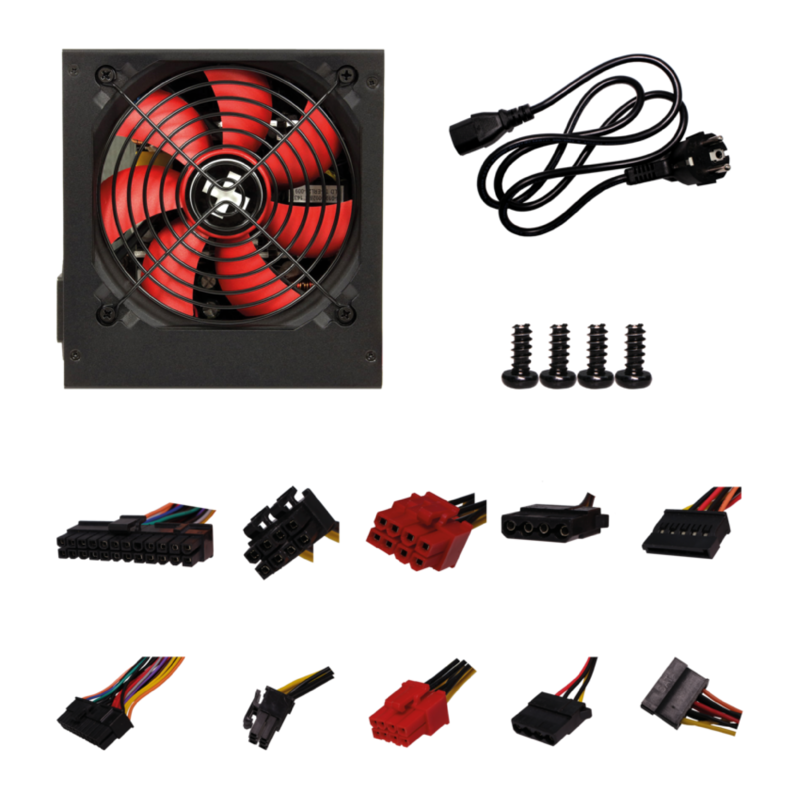

Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 450mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- –
- Sleeved cables
- ✓
- No. of cables
- 5
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- –
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 1
- PATA 4-pin
- 2
- SATA 15-pin (HDD, Drives)
- 4
- FDD (Floppy)
- –
Logistics data, RRP
- Range
- C Series
- Article number
- XN042
- Dimensions, package (L × W × H), (mm)
- 140 × 150 × 86mm
- Gross weight, package (kg)
- 1.5
- Pieces per packaging unit
- 10
- Dimensions, shipping box (L × W × H), (mm)
- 515 × 342× 245mm
- Gross weight, shipping box (kg)
- 15.9
