SPEC
General Data
- Model
- Performance X+ | XP850MR9
- Peak Power (W)
- 1250W
- Form Factor ATX 12V
- Version 3.1
- Voltage (Vac)
- 100 – 240
- Frequency (Hz)
- 50 – 60
- Input current (A)
- 10A
- PFC
- Active

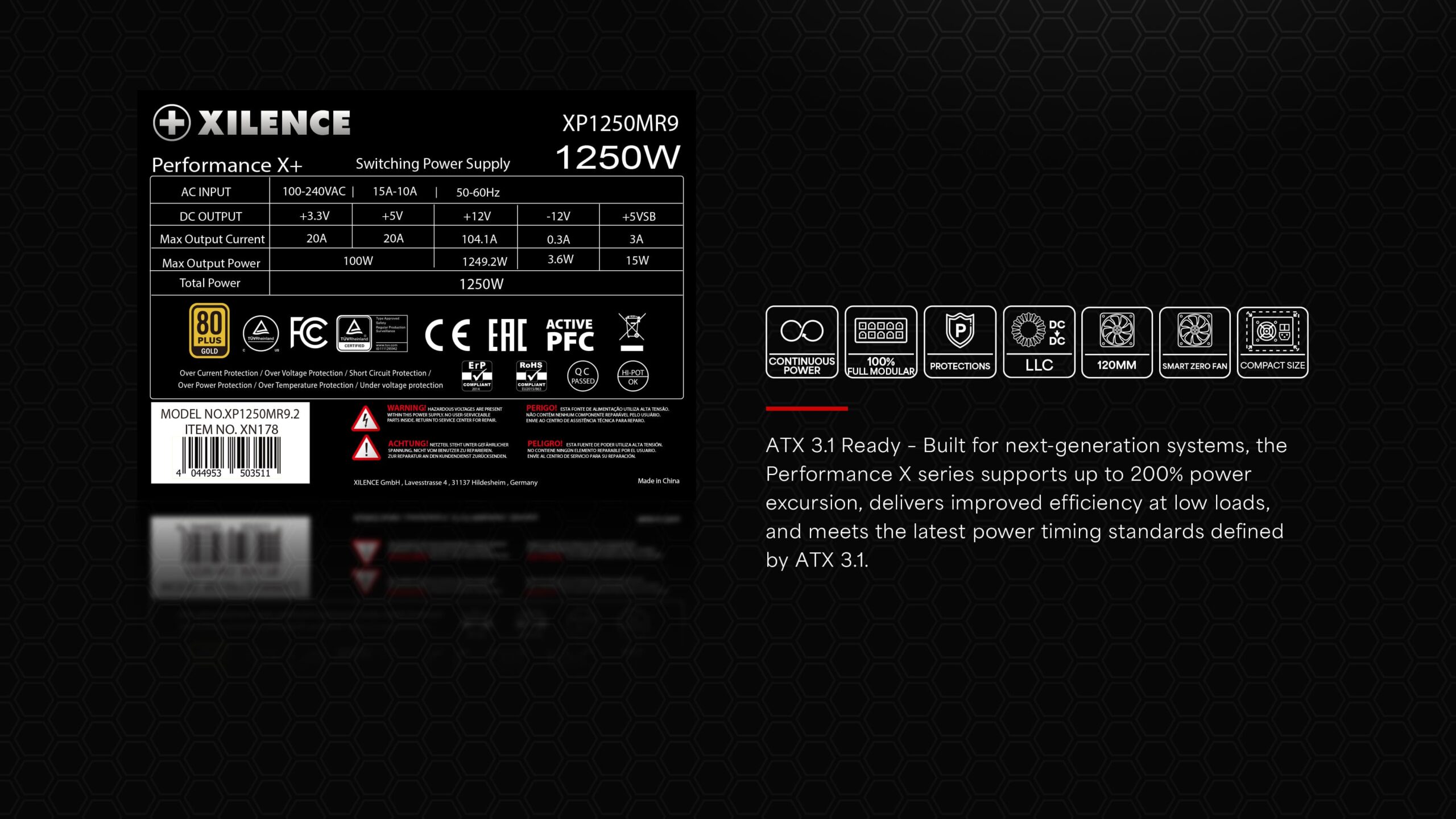

Output
- +3.3V (A)
- 20A
- +5V (A)
- 20A
- +12V (A)
- 104.1A
- -12V (A)
- 0.3A
- +5VSb (A)
- 3A
- Max. combined power 12V (W)
- 1249.2W
- Max. combined power 3.3V + 5V (W)
- 100W

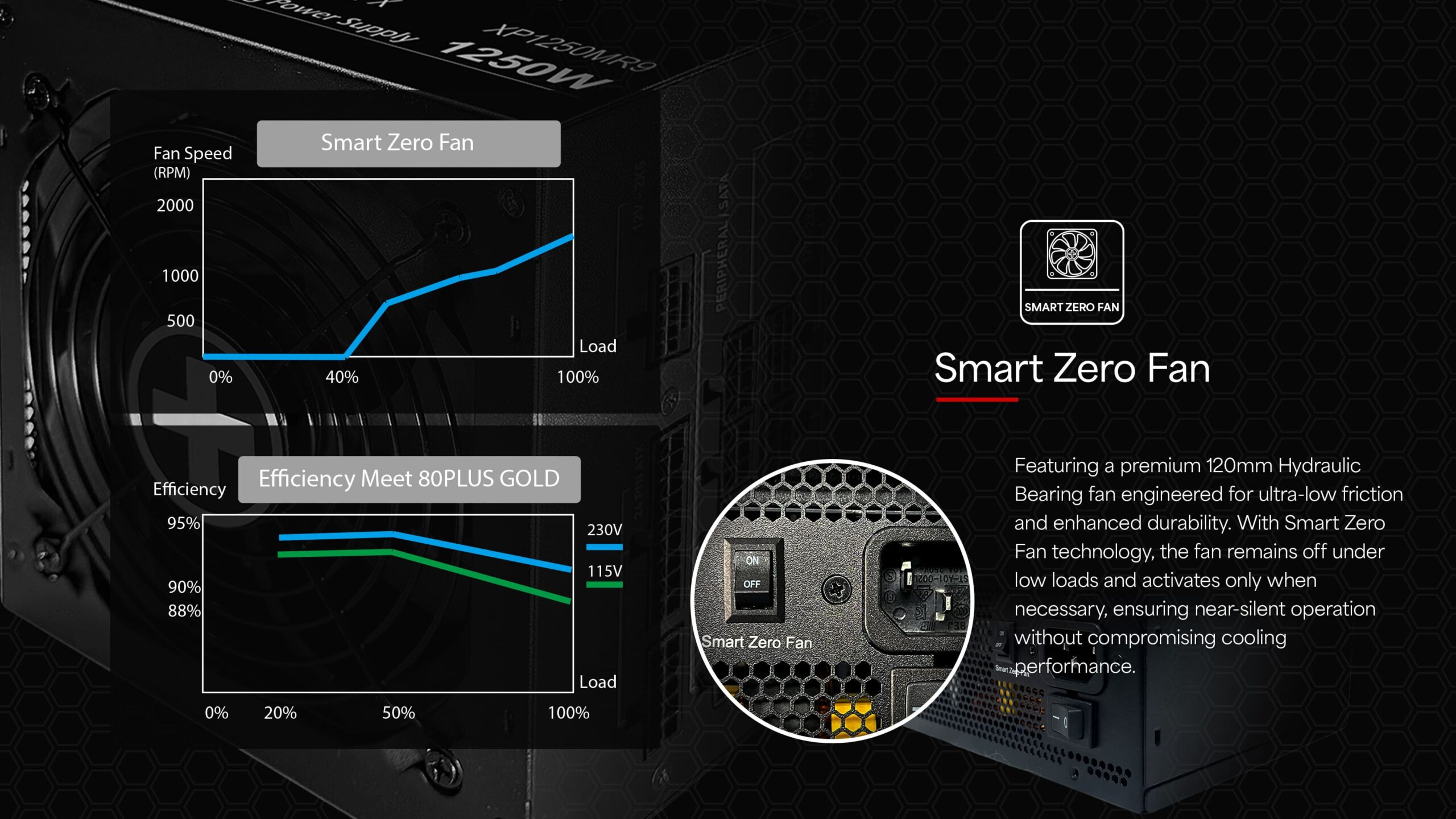

Fan / Cooling technology
- Bearing technology
- Hydro Bearing
- Fan size (mm)
- 120mm
Protection
- OCP (over current protection)
- ✓
- OVP (over voltage protection)
- ✓
- UVP (under voltage protection)
- ✓
- SCP (short circuit protection)
- ✓
- OTP (over temperature protection)
- ✓
- OPP (over power protection)
- ✓
Eco / Efficiency
- 80PLUS certification
- Gold
Environmental directives
- ErP
- ✓
- WEEE
- ✓
- RoHS
- ✓

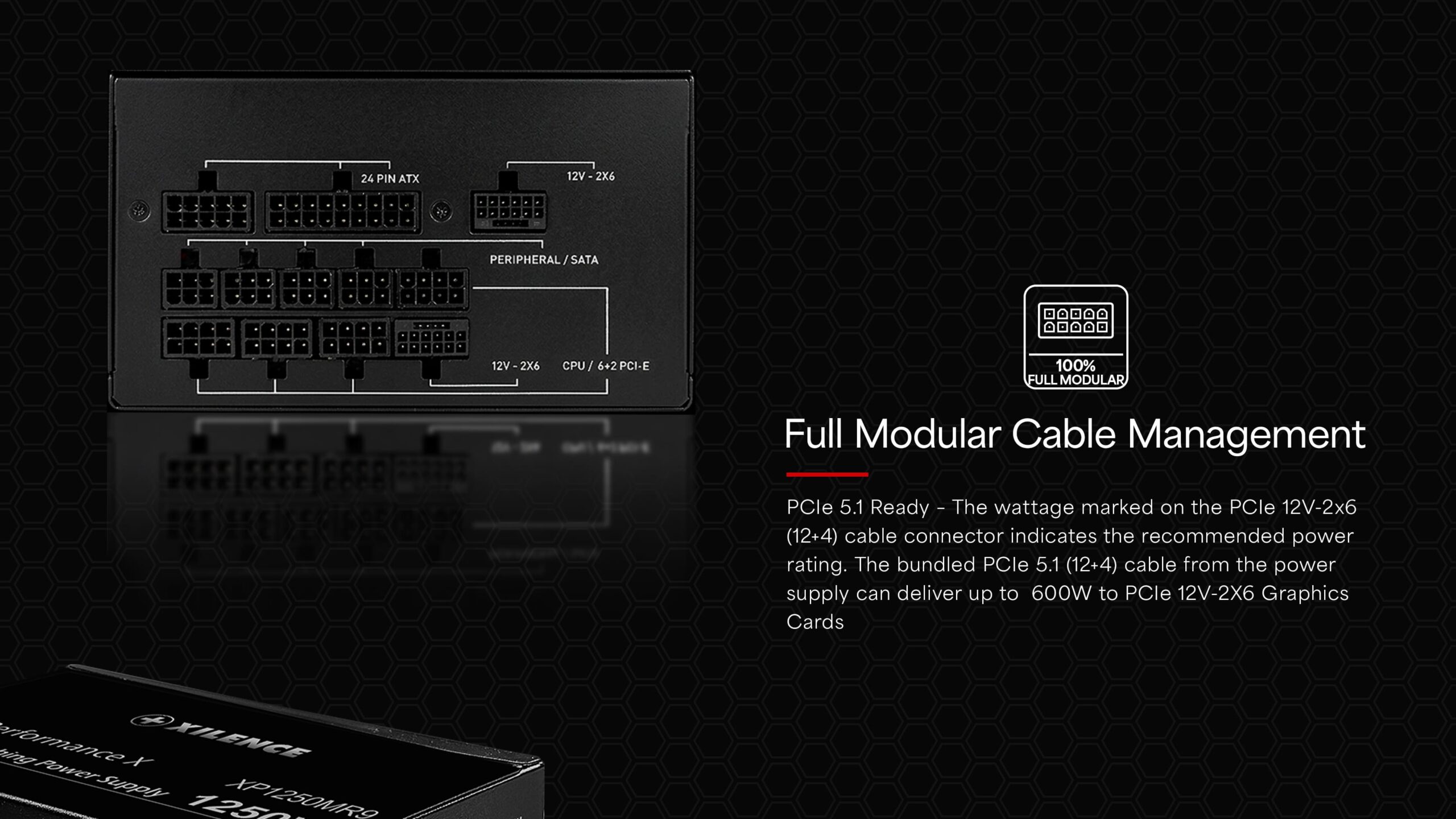

Cable management / Connectors
- Modular cable management
- ✓
- Cable length to mainboard (mm)
- 550mm
- Cable length to first connector (mm)
- –
- Maximum cable length (mm)
- –
- Sleeved cables
- ✓
- No. of cables
- 11
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 2
- P8 (CPU)
- –
- PCI-E 6-pin (GPU)
- –
- PCI-E 6+2-pin (GPU)
- 2
- PCI-E 6+2-pin (GPU)
- 1
- PCI-E 6+2-pin (GPU)
- 2
- PATA 4-pin
- 4
- SATA 5-pin (HDD, Drives)
- 6

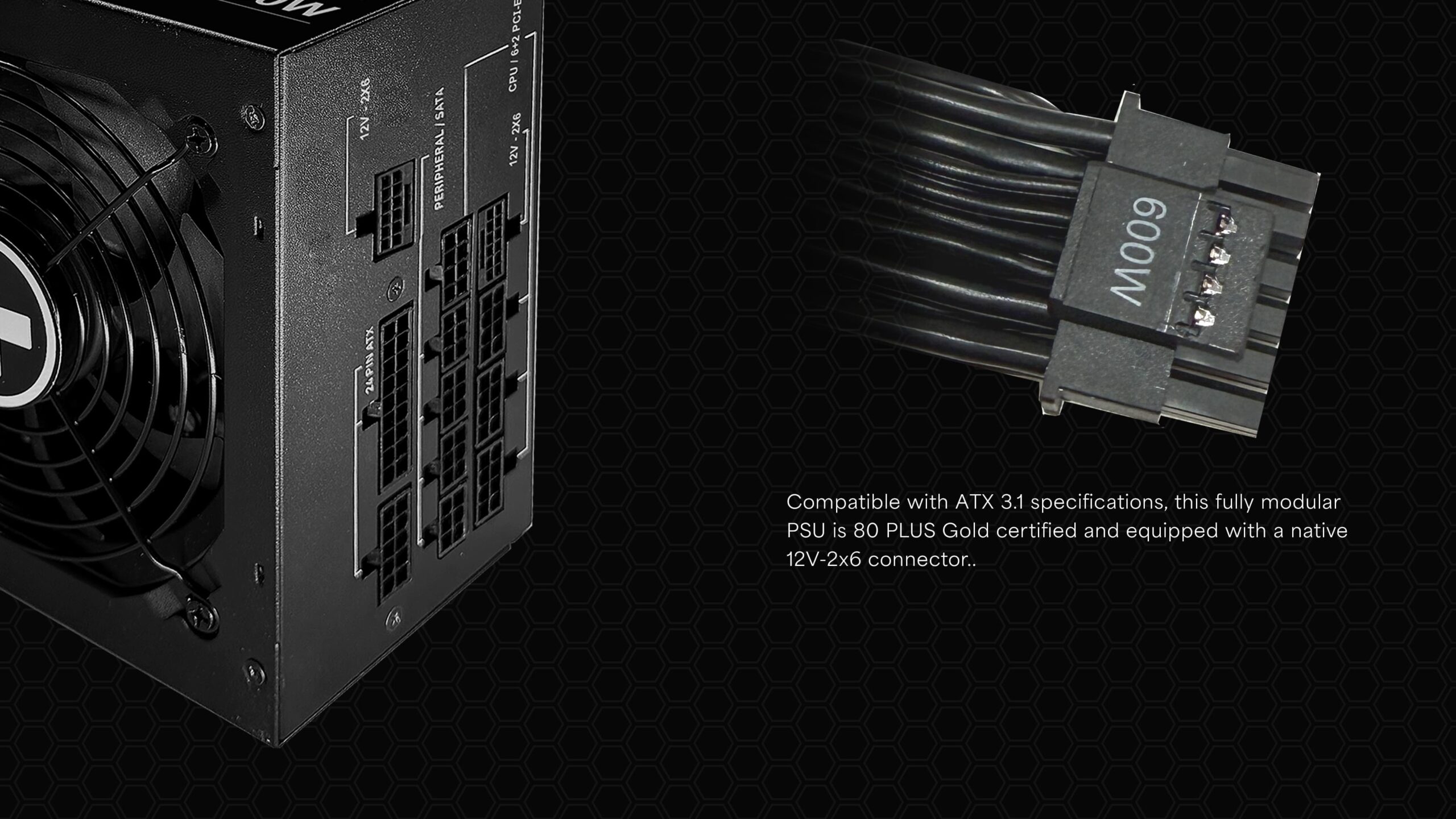

- PCI-e (12+4) 12V – 2X6
- 2
Cable Configuration
Logistics data, RRP
- Range
- Performance X+
- Article number
- XN174

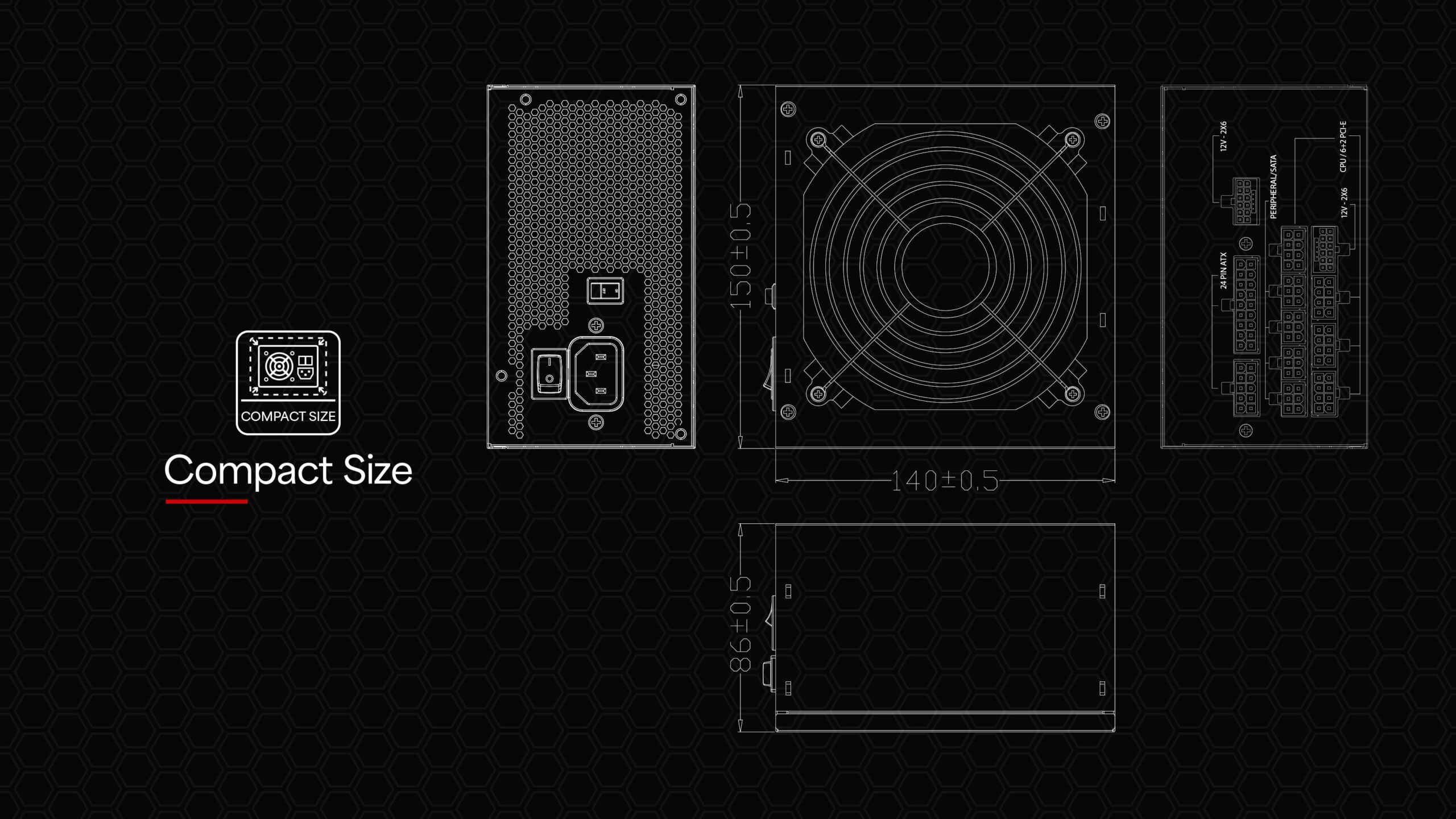

- Dimensions, package (L × W × H), (mm)
- 140 × 150 × 86mm
- Gross weight, package (kg)
- –
- Pieces per packaging unit
- 4
- Dimensions, shipping box (L × W × H), (mm)
- 460 × 305 × 275mm
- Gross weight, shipping box (kg)
- –
